Follow up article to Make More with Inkscape and Ink/Stitch with explicit steps for making an embroidered shirt. Initial draft is below:

Introduction to DIY Embroidery with Inkscape and Ink/Stitch

Embroidered shirts are great custom gifts and can also be a great way show your love for open source. This tutorial will demonstrate how to design your own custom embroidered polo shirt using Inkscape and Ink/Stitch. Polo shirts are often used for embroidery because they do not tear as easily as t-shirts when pierced by embroidery needles. This tutorial is a follow on article to Make More with Inkscape and Ink/Stitch and gives full steps to create your design. Install Inkscape and Ink/Stitch as explained in the tutorial, then open up Inkscape and create a new empty document.

First create a message to put on your polo shirt. Choose Extensions>Ink/Stitch>Lettering. Then choose a font, for example Geneva Simple Sans, add your text,

Another Awesome
Fedora Linux User

Image of lettering creation dialogue box

Then click on Apply and Quit. A preview will appear, click on Quit. Your text should appear in your Inkscape document. Move it somewhere reasonable.

Image of resulting text in Inkscape document

We will now add a picture to our text. Pictures with only a few plain colors work well for embroidery. We will use a public domain black and white SVG image of Tux created by Ryan Lerch and Garret LeSage.

Black and white image of Tux

Download this public domain image, tux-bw.svg, to your computer, and import it into your document as an editable SVG image

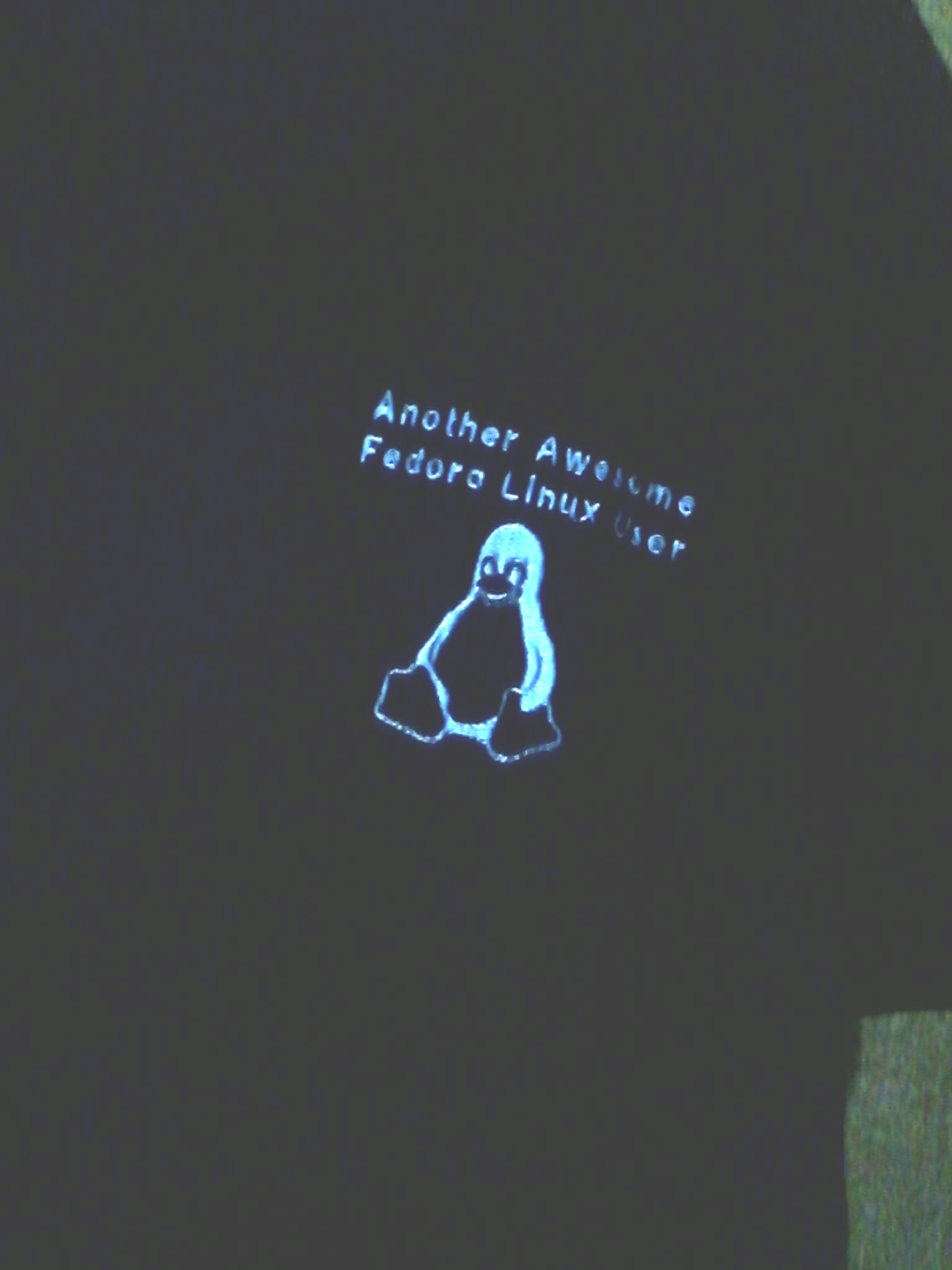

Image of Tux with text to be embroidered

Click on the image of Tux to select it and then click on 'Object>Fill and Stroke', in the menu. Change the fill to No Paint so that the white interior of Tux disappears. This will leave the black area to be embroidered. The image will need to be converted to a format that can be
can be embroidered. Click on the image of Tux to select it again. Choose Extensions>Ink/Stitch>Fill Tools>Break Apart Fill Objects .... In the resulting pop up, choose the Complex Object then wait for the operation to complete. A preview image will appear,
click on Quit to close the preview. For further explanation of this operation, see the
Ink/Stitch documentation.

You now need to convert your file to an embroidery file. A very portable format is the
DST (Tajima Embroidery Format)
format, which unfortunately does not have color information, so you will need to indicate color information for the embroidery separately. Go to the File>Save As and then choose the DST file format. You can preview the DST file in Inkscape, but another very useful tool is
vpype-embroidery

Install it on the command line using

pip install vpype

Then preview your DST file using

vpype eread AnotherAwesomeFedoraLinuxUser.dst show

Preview of design created by vypye-embroidery

Check the dimensions of your design, if you need to resize it, you should resize the design file before exporting it as a DST file. Resizing the DST file is not recommended since it contains
stitch placement information which should be adjusted to obtain a high quality embroidered result.

To indicate color information, it is helpful to create a mockup of a polo shirt, along with the approximate placement of your design on the polo shirt which you can then send to an embroidery company with your DST file.

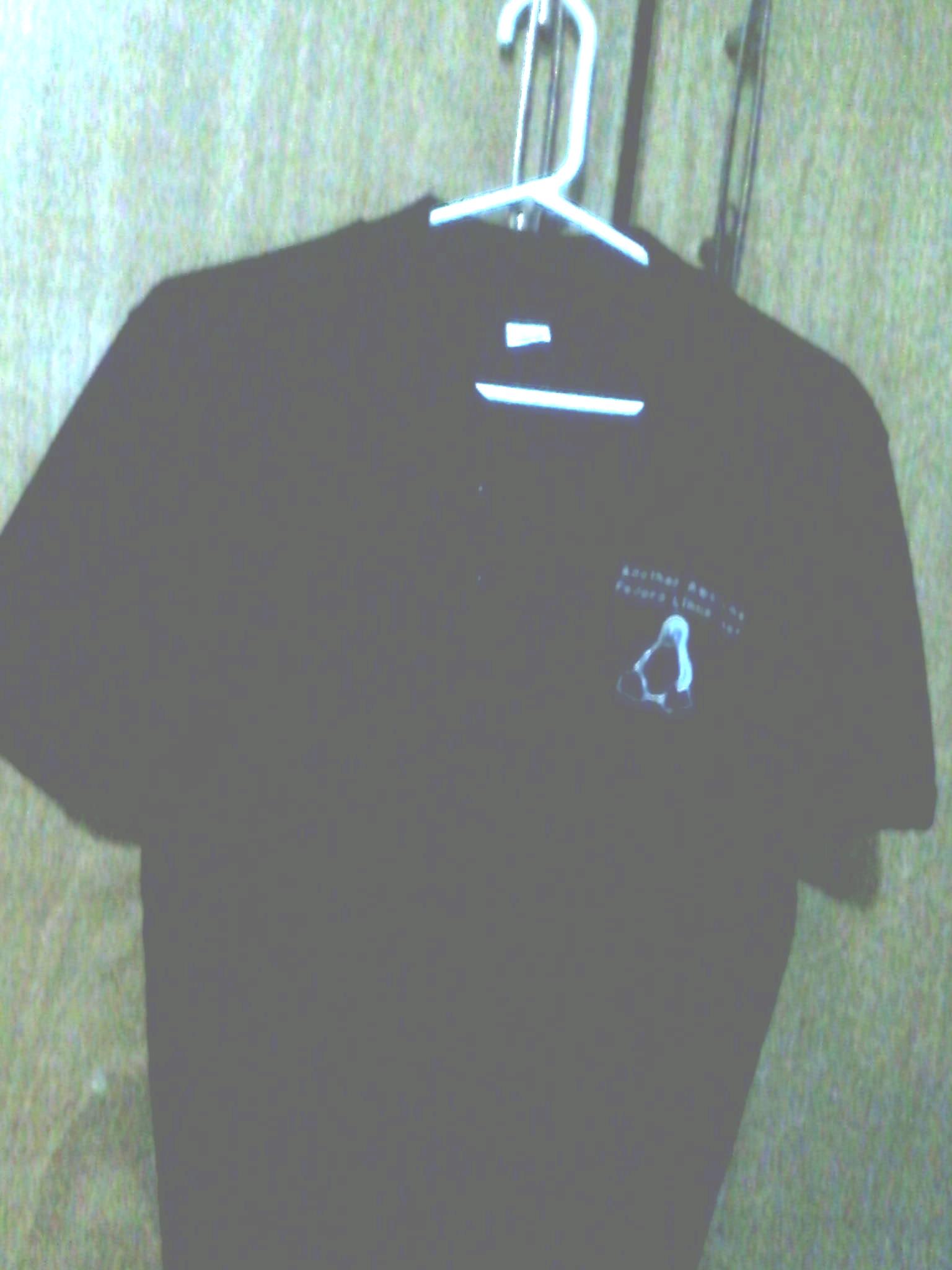

Mockup image of polo shirt with design

Some companies that can do embroidery given a DST file include
- based in the USA
- based in Ghana
- based in Cyprus
- based in Kenya
- based in South Africa
search the internet for professional machine embroidery services close to you or a hacker space with an embroidery machine you can use.
